Classic fiber splicing machine. 4.3-inch touch screen, small size, easy to carry. Dust-resistant, water-resistant, shock-resistant, greater environment adaptability.
Main features:
The innovative end-face imaging system provides clear visibility of both ends of the optical fiber, enabling precise core alignment.
The arc position is adjustable, and the arc size can be calibrated in real time.
The software is upgradable; data can be stored and exported.
Pause function – designed to facilitate scientific research and teaching.
Suitable for various coated optical fibers (coloring, opaque, 900 μm sheath).
For applications requiring short fiber optic cables in polarization-maintaining devices.
|

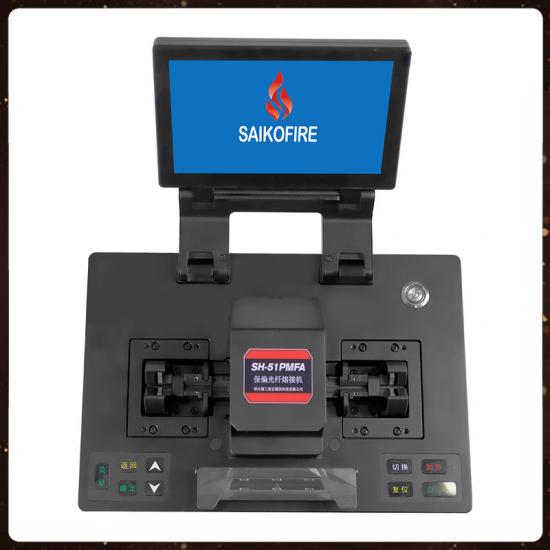

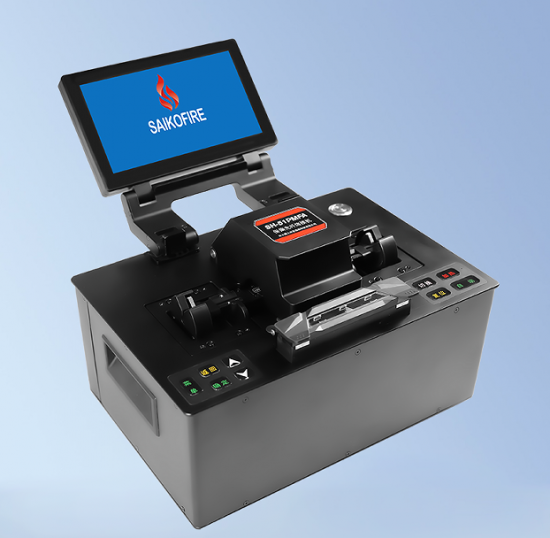

Model |
SH-51PMFA |
SH-51PMFB |
|
Applicable optical fiber |
Polarization-maintaining fiber(PMF): Panda-type, Bow-tie-type, Elliptical-type; SMF(G.652), MMF(G.651), DSF(G.653), NZDSF(G.655), BIF(G.657) |
|
|
Optical fiber cladding diameter |
60-150 μm |
125-250 μm |
|
Coating layer diameter |
100 μm～900 μm |
165 μm～900 μm |
|
Cutting length |
5.5～16mm |
|
|
Typical fusion time |
90 second |
|
|
Extinction ratio |
-38dB |
|
|
Average fusion loss |
0.02dB（SMF）,0.01dB（MMF）,0.05dB（PSF,NFD,BIF,PMF） |
|
|
Return loss |
≥60dB |
|
|
Axis Mode |
0 °、45 ° 、90 ° |
|
|
Axis Method |
Front surface, Side surface |
|
|
Operate mode |
Automatic, Manual |
|
|
Automatic discharge calibration |
Support |
|
|
Electrode life |
5000 discharge cycles |
|
|
Welding Procedure |
80 Group Program – 15 factory preset programs |
|
|
Data storage |
Can store up to 10,000 fusion logs and 30,000 images. |
|
|
Language Display |
Chinese or multiple languages available |
|
|
Operational environment |
Temperature: -25°C to +50°C; Humidity: 0%–95% RH (no condensation); Altitude: 0–5000 m; Wind speed: Maximum 15 m/s |
|
|
Storage Environment |
Temperature: -40°C to +80°C; Humidity: 0%–95% RH (no condensation) |
|
|
Source |
AC adapter: AC input voltage – 85–260 V, 50/60 Hz |
|
|
Monitor size |
7 Inch color high-resolution LCD screen |
|
|
Size/Weight |
296（D） ×200（W） × 194（H）mm/6kg |
|
