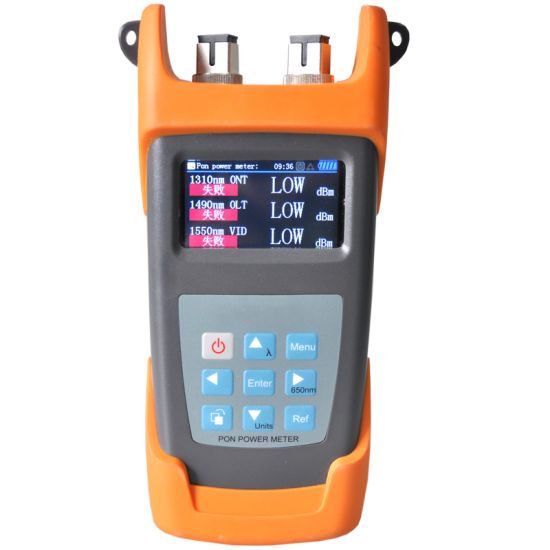

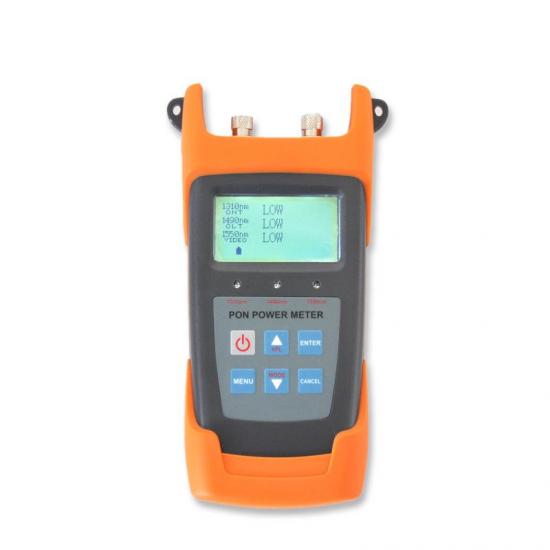

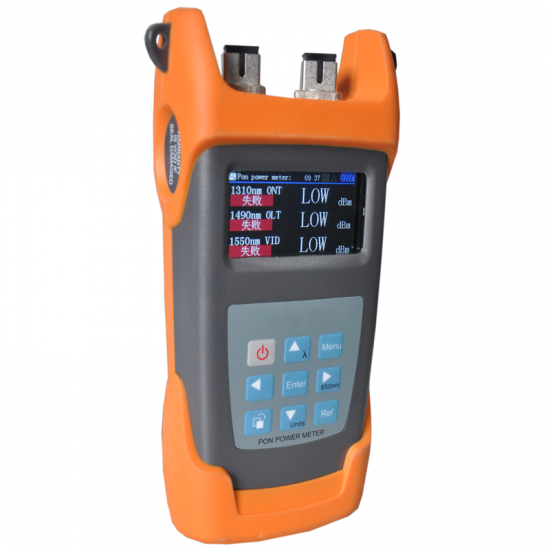

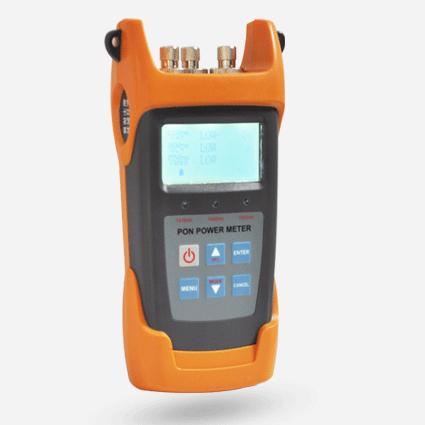

Stable Optic Fiber PON Power Meter S316

Designed for PON network construction and maintenance.

It can perform in-service testing of all PON signals (1310/1490/1550nm) on any spot of the network.

  • Item NO.:

    S316
  • Order(MOQ):

    1
  • Payment:

    T/T, Paypal, Credit Card, Western Union, etc.
  • Product Origin:

    China
  • Color:

    Standard
  • Shipping Port:

    Nanjing/Shanghai/Guangzhou/Shenzhen/etc.
  • Lead Time:

    in 2 Working Days
  • Product Detail

Introduction

S316 targets at the FTTx application and maintenance. This PON power meter is able to simultaneously test and estimate the signals of the voice, data and video. It is an essential and ideal tool for the construction and maintenance of the PON projects.


Features

  • Providing simultaneous measurement at EPON/GPON/GEPON for all three wavelengths on the fiber (1490nm, 1550nm,1310nm )
  • Used in Burst mode measurement of 1310nm upstream
  • Convenience for threshold setting, which can set the threshold on the tester

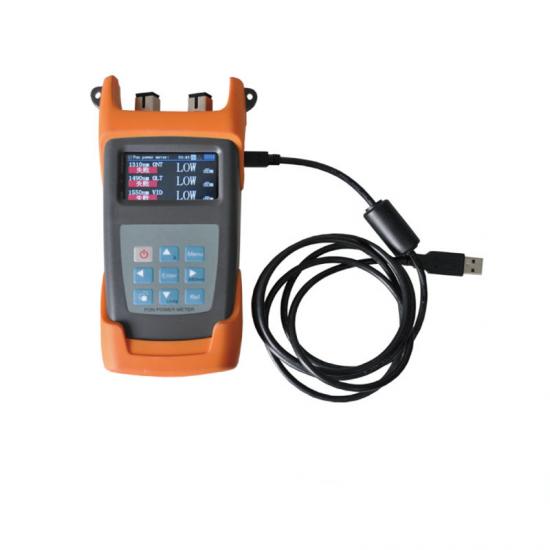

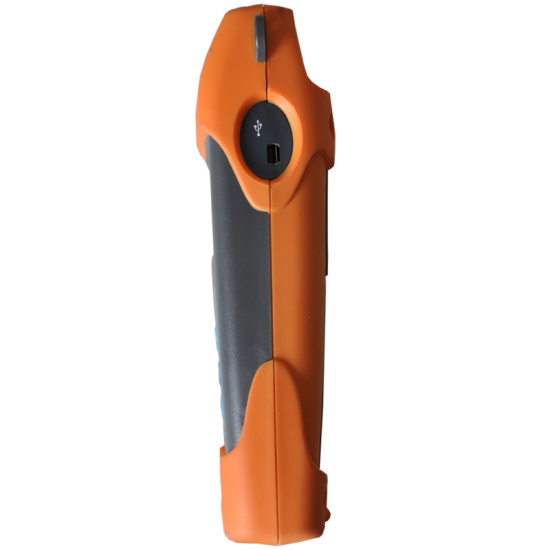

  • USB communication port enables data transfer to a PC
  • Offers up to 10 different threshold sets in total
  • User self-calibration can be retrieved in computer through the software
  • 10 minutes Auto-off function can be activated or deactivated with keypad operation



Specifications

Model

S316

Wavelength

1310nm

1490nm

1550nm

Pass Zone(nm)

12601360

14701505

15351570

Isolation (dB)

>40@1490

>30@1310

>40@1310

Isolation(dB)

>40@1550

>40@1559

>40@1490

Measurement Range(dBm)

-40+10

-40+10

-40+20

Measurement Accuracy

Connatural uncertainty(dB)

±0.5

Linearity(dB)

±0.1

Passing through insertion Loss(dB)

<1.5

General Information

Detector Type

InGaAs

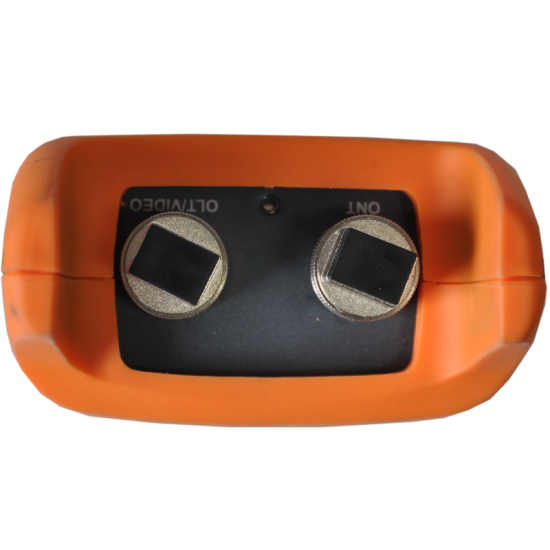

Optical Connector

FC/SC Interchangeable

Fiber Type

9/125um

Display

LCD:128*64

Measurement Unit

dB/dBm/xW

Resolution (dB)

0.01

Power Supply

3 AA1.5V battery

Operation Temperature (℃)

-1060

Storage temperature (℃)

-2570

Dimension(mm)

200x90x50

Weight(g)

285
