Multi-function Network Cable Tester RJ45 Wire Ethernet Tracer

Overview
This cable tester is suitable for RJ11 RJ45 UTP STP. Judge continuity of the cables or wires. Receive the tone signal on the cables or wires (telephone line). Identify the state in the working telephone line (clear, ring, busy). It comes with an earphone support to enable service technician to work conveniently and comfortably in noisy environment.

Description

1. Cable Tester for UTP STP RJ45 RJ11;
2. Automatic efficient scan for the miss wiring, disorder cable, open and short circuit;
3. TEL BNC test available(Adapter needed);
4. Remotely test cable up to 1000 ft in length ( remote kit included );
5. Protective power switch for low power consumption;
6. High quality protecive case provides more secure protection;
7. Judge continuity of the cables or wires;
8. Track the cables or wires, and diagnose the break point;
9. Receiver the tone signal on the cables or wires (telephone line);
10.Identify the state in the working telephone line (clear ring, busy);
11.Send a single solid tone or a dual alternating tone to the object cables or wires.

Features

1. 100% brand new

2. Streamlined design and easy to carry

3. Comes with earphones usable in noisy situation

4. Flexible and versatile interface

5. Sensitive and adjustable volume control

Specification

Max. operating current:

Emiter: 10mA, Receiver: 30mA
Signal transfe mode:Multi-frequency pulse
Signal output level: 8Vp-p
Signal transfer distance: 3Km

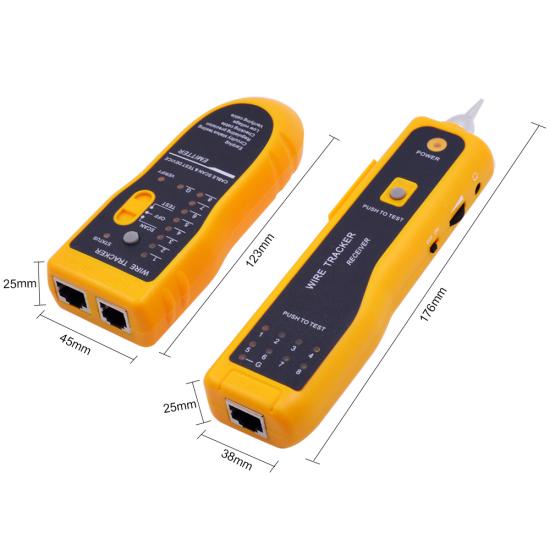

Dimension:Transmitter: 126x49x34mm Reveiver:175x42x25mm

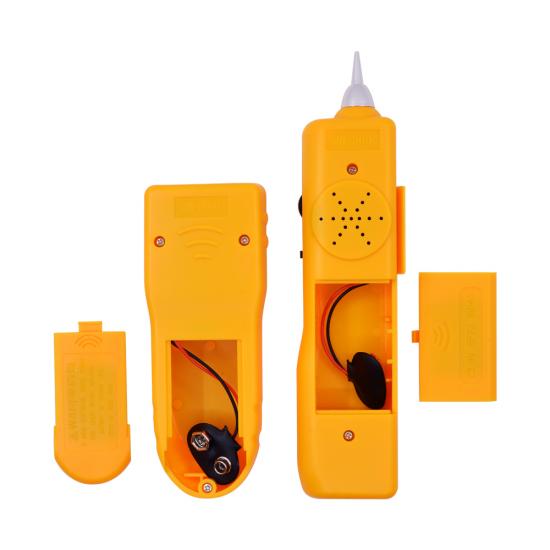

Power: by 2 x DC 9V Battery( not included)

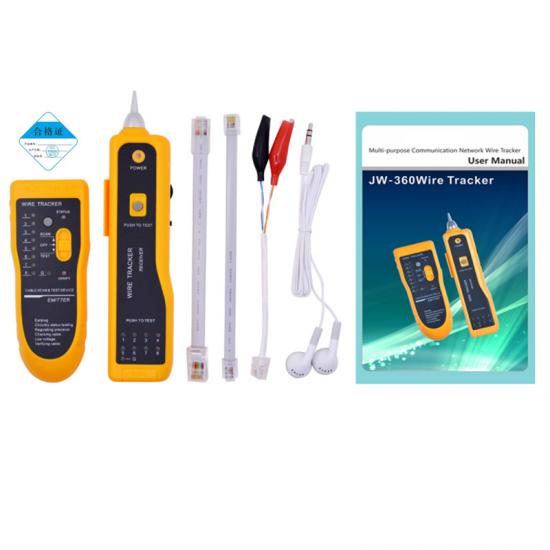

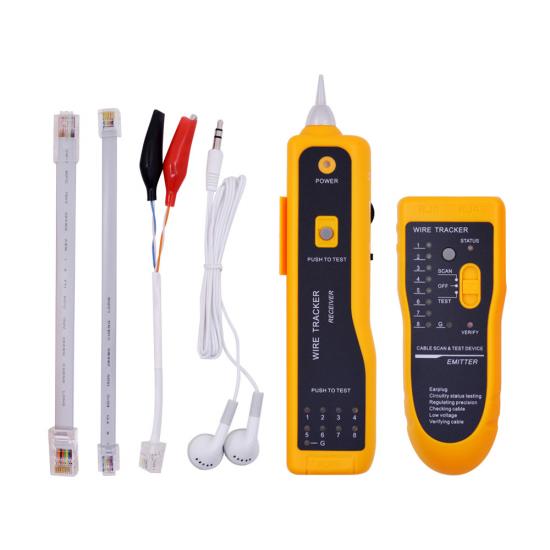

Package Contents

1 x Emitter

1 x Receiver

1 x RJ11 Cable

1 x RJ45 Cable

1 x Earphone

1 x Cable with Crocodile Clamp

1 x Instruction Manual
