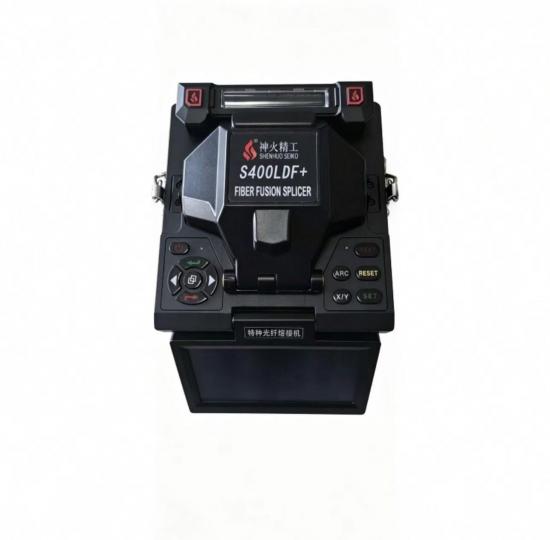

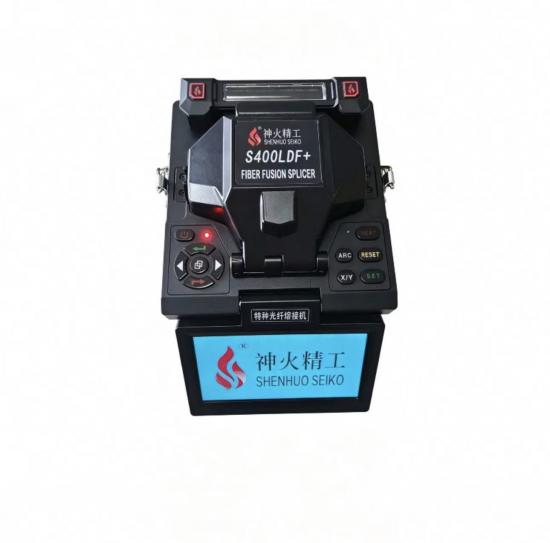

S400LDF+

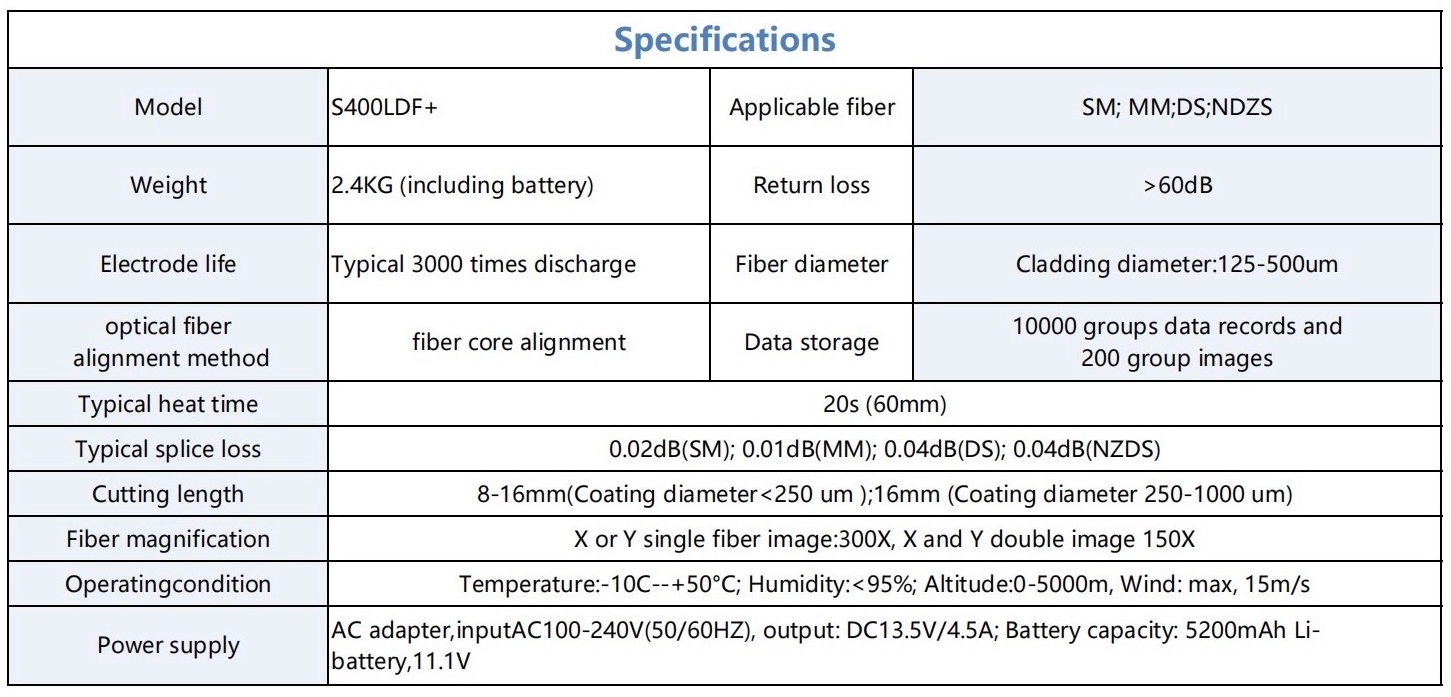

S400 LDF specialty fusion splicer is a new model with innovative technologies to reach the special splicing needs of factory, manufacturing, laboratory and R&D applications. Users can splice the large diameter fibers (125~500um) with  S400 LDF Specialty Fiber Fusion Splicer. Specifications Model S400LDF Applicable fiber SM(Single mode); MM(Multi mode); DS; NDZS Dimension Weight 2.4KG (including battery) Return loss >60dB Electrode life Typical 3000 times discharge Fiber diameter Cladding diameter:125~500μm Heat-shrinkable tube 60mm、40mm and a series of miniature tube Data storage 10000 groups data records and 100 group images Typical heating time 20seconds (60mm heating tube) Tension test Typical 2N Typical splice time 8-10 seconds Typical splice loss 0.02dB(SM); 0.01dB(MM); 0.04(DS); 0.04(NZDS) Cutting length 8~16mm(Coating diameter

1. Six motor core to core, core adjustment, center alignment 2. Artificial calibration and Real-time ARC automatic calibration are optional. 3. The same optical fiber and different opticalfibers are connected in the center. 4.Electrical discharge ARC makes realtime compensationaccording to the pressure, environment and temperature parameter. 5.Two cameras can observe X axes and Y axes at the same time. 6. High resolution 5 inch color LED touch screen, multi languages are customizable. 7.2 USB ports: one for data transmission,one for power supply of LED light

1. Manual correction and real-time automatic ARC correction are optional. 2.High-power dual LED light design for enhanced visibility during nightime operations. 3. The discharge arc is compensated in real time based on air pressure, environmental, and temperature parameters. 4. Two cameras can simultaneously observe the X-axis and Y-axis directions to achieve fiber alignment. 5. High resolution 4.3 inch color LED touch screen, multi languages are customizable. 6. Equipped with two USB, one for data transfer and one for external construction lighting. 7. Two 12V power ports, both the internal battery and the external power supply can be directly powered.

Standard size, light weight and reasonable structure. Easy for management and operation.

Check line device also comes with RJ45 and RJ11 line sequence check function. more advanced network cabling equipment.

compact and easy to carry 1550nm wavelength active fiber live test

The Shenhuo Seiko SH-T301 is a state-of-the-art benchtop system designed specifically for the challenging task of removing Polyimide (PI) coatings from specialty optical fibers. Polyimide coatings are renowned for their thermal stability and chemical resistance, making them notoriously difficult to strip using conventional mechanical or chemical methods, which often result in glass damage or hazardous chemical exposure.

Applicable optical fibers Quartz polarization maintaining fiber: panda shaped, bow tie shaped, elliptical shaped
