In the rapidly evolving landscape of industrial manufacturing, the fiber laser has become the backbone of modern cutting, welding, and marking applications. As these high-power machines become more ubiquitous, the supporting industry for their maintenance and repair has faced a growing technological gap. Standard telecommunications equipment is simply no longer sufficient for the heavy-duty demands of industrial optics. At Shenhuo Seiko, we understand that when a production line stops due to a laser failure, every second counts. This is why we have dedicated our engineering resources to solving the specific challenges of large-core fiber handling.

Who is Shenhuo Seiko?

Shenhuo Seiko Nanjing Communication Technology Co., Ltd. is not just a manufacturer; we are a dedicated partner in the optical communication and laser industry. Based in Nanjing, a hub of technological innovation, our company has built a reputation for bridging the gap between high-cost international equipment and the practical needs of field technicians. We specialize in developing robust solutions, from optical time-domain reflectometers (OTDRs) to advanced fusion splicing systems. Our philosophy is rooted in the "Seiko" spirit—striving for meticulous precision in every splice and every measurement. We don't just sell tools; we provide the critical infrastructure that keeps the global laser industry running smoothly.

The Challenge of Large Diameter Fibers (LDF)

The primary hurdle in fiber laser maintenance is the fiber itself. Unlike standard G.652 fibers used in telecom (which have a 125μm cladding), fiber lasers often utilize Double Clad Fibers (DCF) with cladding diameters ranging from 250μm to 400μm or even larger. Attempting to join these fibers using a standard V-groove splicer is a recipe for disaster. Misalignment leads to severe splice loss, which in high-power applications (1kW-10kW+) translates immediately into heat. This heat can catastrophically burn the splice point, damaging the expensive laser source.

To address this, professionals need a specialized Large Diameter Fiber Fusion Splicer that offers both the mechanical capacity to hold thick fibers and the software intelligence to align them perfectly.

Introducing the S400 LDF: The Professional’s Choice

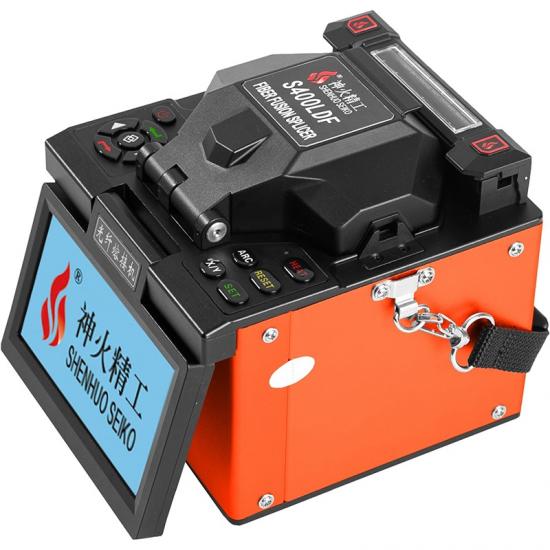

We are proud to introduce our flagship model for this sector: the Laser Source S400 LDF Large Diameter Fiber Fusion Splicer.

The S400 LDF is engineered specifically to handle the diverse requirements of laser source manufacturing and repair. Unlike bulky glass processing stations that are confined to laboratories, the S400 offers a portable, field-ready design without compromising on performance. It features a specialized clamping system and a wide electrode gap capable of generating the stable, high-power arc required to melt thick silica glass.

Key Technical Advantages

What sets the S400 apart in the crowded market of splicing tools?

1. Versatile Cladding Support: The machine is designed to splice fibers with cladding diameters from 125μm up to 500μm. This covers the vast majority of gain fibers and passive delivery fibers used in commercial fiber lasers today.

2. 6-Motor Precision Alignment: For specialty fibers, core alignment is non-negotiable. The S400 utilizes a 6-motor mechanism that adjusts the fiber position in the X, Y, and Z axes. This ensures that even if the fiber core is slightly concentricity error, the machine can align the light-guiding cores accurately to minimize loss.

3. Cost-Effective Performance: Traditionally, equipping a workshop for fiber laser source repair required an investment rivaling the cost of a luxury car. The S400 disrupts this market by offering professional-grade LDF splicing capabilities at a fraction of the cost of Japanese or American competitors, making it accessible for third-party repair shops and smaller R&D labs.



Real-World Applications

The S400 is currently being used globally in two main sectors. First, in the R&D and laboratory environment, researchers use it to create high-power combiners and test new fiber geometries. Second, and perhaps most importantly, it is the workhorse for the after-sales service market. When a laser delivery cable is damaged on a factory floor, technicians equipped with the S400 can perform on-site repairs, restoring the laser to full power and saving the end-user thousands of dollars in replacement costs.

At Shenhuo Seiko, we believe that high-quality tools should be accessible to those who need them most. The S400 LDF represents our commitment to specialty fiber splicing technology, combining durability, precision, and affordability. Whether you are building the lasers of tomorrow or fixing the lasers of today, the S400 is ready to work.

If you are looking to upgrade your repair capabilities, explore the S400 LDF today and experience the Shenhuo Seiko difference.
