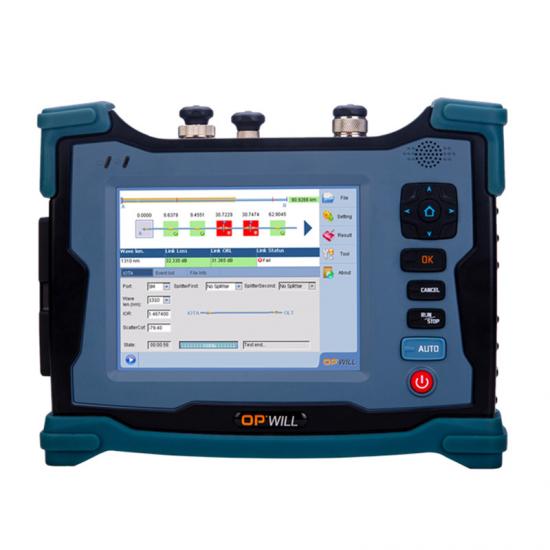

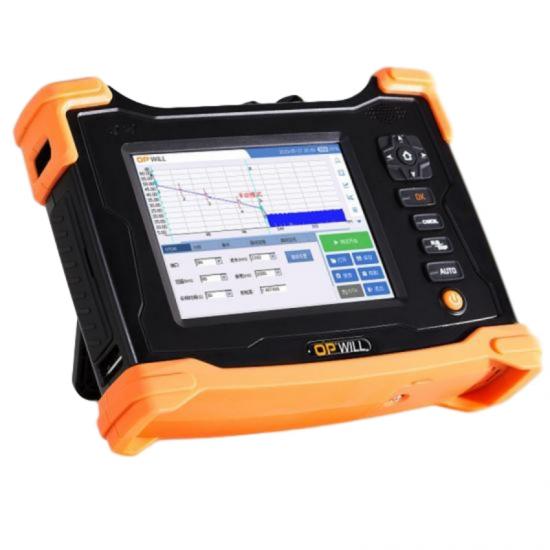

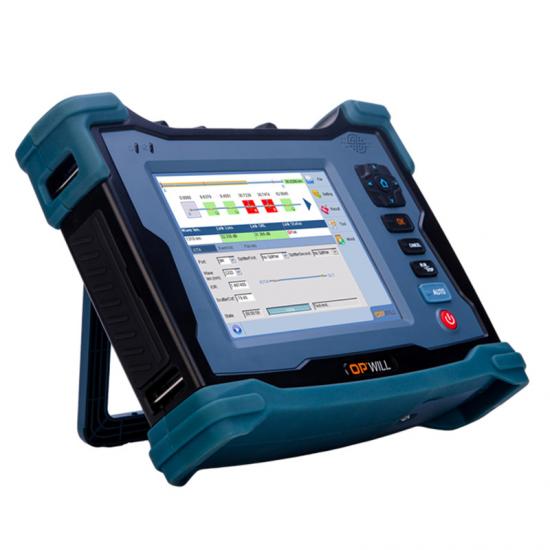

FTS510 Series Handheld OTDR Test Set

Entire New Design, One Button 'Auto’'Test.

Lightweight, rugged, dustproof and shockproof.

FTS510 Series Handheld OTDR Test Set has 8 models to meet various test environment.


  • Item NO.:

    FTS510
  • Order(MOQ):

    1
  • Payment:

    T/T, Paypal, Credit Card, Western Union, etc.
  • Product Origin:

    China
  • Shipping Port:

    Nanjing/Shanghai/Guangzhou/Shenzhen/etc.
  • Lead Time:

    in 2 Working Days
  • Product Detail

Introduction

FTS510 Series OTDR Tester is entirely new pad product. It has rapid start technology and supports automatic and real-time test mode, which can guarantee engineers to examine and detect optical fibres or cables in core, metro, and access network with high flexibility, efficiency, and convenience. Meanwhile, its operation system interface has high similarity with Android GUI, significantly simplifies the test procedure


Features

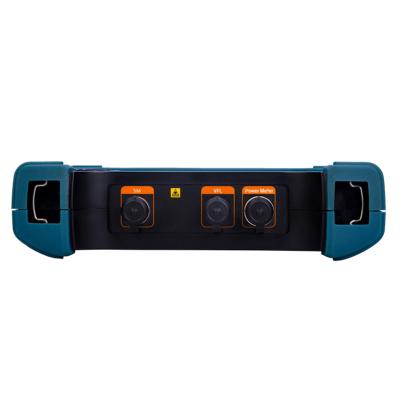

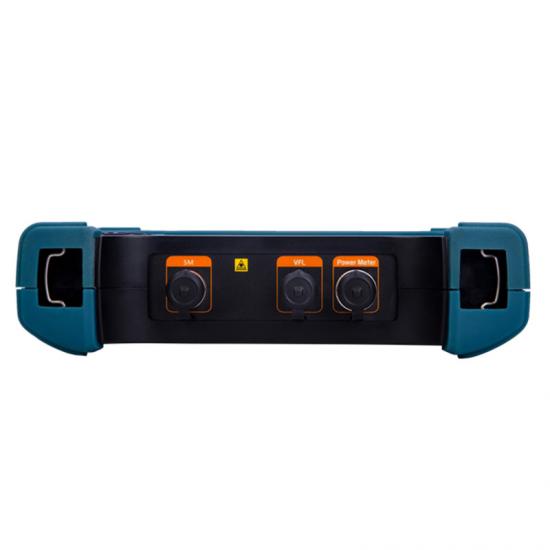

  • ALL-IN-ONE with OTDR, iOTA, iNET, PM, LS, VFL and Fibre Scope.
  • More comprehensive test features with higher performance-to-price ratio.
  • 5.6-inch touchscreen, outdoor enhancement.

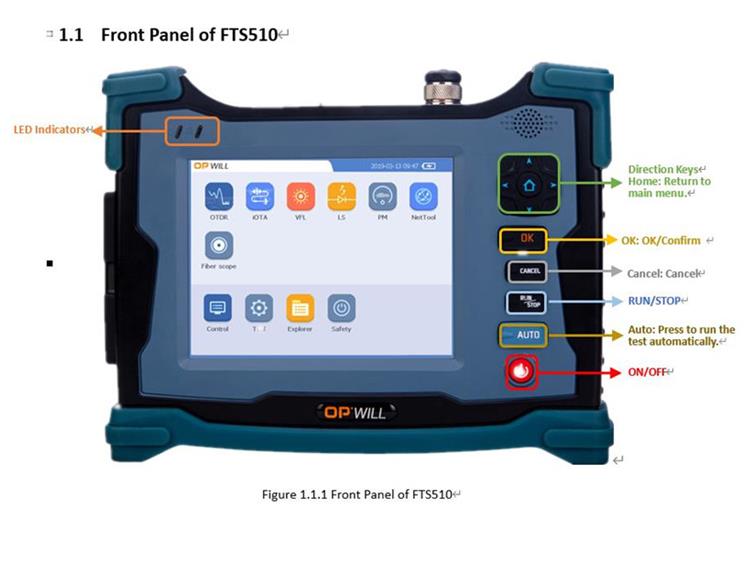

  • Friendly keystroke designed for easy, friendly user interface and easy to use.
  • Lightweight, rugged, flexible for field testing.
  • Fast start-up, high resolution colour touch display.
  • Novice mode with automatic trace diagnostics, one-button setup and events detection.
  • Markers for distance, attenuation, reflectance, and splice loss.
  • Dynamic range up to 45dB.
  • SR-4731.sor file formats.
  • Support VFL.
  • Support iOTA (Optional).
  • Support power meter (Optional).
  • Support light source (Optional).
  • Event dead zone is less than 0.8m.
  • Attenuation dead zone is less than 4m.
  • The minimum sampling resolution is 4cm and the sampling points up to 256,000.
  • Remote measurement via RJ45 connection using OPWILL OTDR Desktop software.


Module

Product

Wavelength

Dynamic Range

Regular OTDR

FTS510-E-ac

1310/1550nm

45/43dB

FTS510-M-ac

1310/1550nm

43/41dB

FTS510-H-ac

1310/1550nm

40/39dB

FTS510-N-ac

1310/1550nm

35/34dB

FTS510-L-ac

1310/1550nm

32/30dB

PON OTDR

FTS510-H-acd

1310/1550/1625nm

40/39/38dB

FTS510-H-abcd

1310/1490/1550/1625nm

40/37/39/38dB

FTS510-H-ace

1310/1550/1650nm

40/39/38dB

FTS510-H-abce

1310/1490/1550/1650nm

40/37/39/38dB


Specifications

GENERAL SPECIFICATIONS

Screen

5.6 inch TFT touch screen (640×480)

Other Interface

USB

USB, type A port, 2

Ethernet

10/100M Base-T, RJ45

Other Parameters

Storage

16G

Size and Weight

161(H) x 210(W) x 46(D)mm; 1.0kg

Temperature

Operating: -10°C to 50°C; Storage: -40°C to 70°C

Relative Humidity

0% to 95% (non-condensing)

EMC

EN55022/CIPSR22; EN61000-3-2; EN55024

Battery and Power Supply

Battery

·      Rechargeable Li-Lon battery;

·      Working time: 5 hours;

·      Charging time: <3 hours (typical: 25°C)

Power Supply

·      Input: 100-240V AC, 50-60Hz, 2A;

·      Output: 15V DC, 2A
